In a woodworking shop, wood dust is always a big problem for woodworkers. Flying dust particles can severely harm not only the health of operators but also the environment. In past decades, woodworkers mostly used traditional dust collectors, such as bag collectors, or cyclone collectors. However, all of these existing collectors have never really solved the problems, instead, they created more issues:
- Very High Noise Levels (95-100dbA) – constantly damages operators’ ears.
- Difficult Maintenance – filters are easily clogged by dust and need be cleaned frequently.
- Bulky Structure – it occupies a very large space in a woodworking shop.
- Large Power Consumption – normally requires 3-5HP with expensive operating costs.
Traditional Cyclone Dust Collectors
Cyclone dust collectors separate dusts by gravity (see diagram above). As gravity is not strong enough to push down small particles, only heavy dusts drop to dust tank. Up to 40% small dust particles are pushed up to filters which will be easily blocked, causing that the sucking static pressure drops rapidly. In addition, the dusty air flows in the cyclone and creates very large noise/vibration and energy consumption. All these problems have never been solved until now.
A Revolutionary Dust Processor
Because of the principal contradiction between dusty air flow and filtration,traditional dust collectors are struggling with filter clogging or bad air quality. Most of the dust collectors are very loud, bulky and difficult to maintain. This has been a long-standing pain for woodworkers.
To solve this problem, Harvey team of engineers spent over 7 years of research and study, to develop an unprecedented Dust Collector, the Gyro Air® G-700 Wood Dust Processor. The G-700 Gyro Air® Wood Dust Processor incorporates a unique, patented technology to separate dust particles from the air and capture them before they enter the filters.
The G-700 uses the new Axial Centrifugation Technology (called Gyro Air® Technology), to spin the air/dust stream up to 4,000 RPM and generate a super strongcentrifugal force (over 100 times gravity) toseparate the dust from the air and collectit in two dust bins hidden internallyin the unit.
High Efficiency
99.7% dust separation before filtration
Energy Saving
Up to 50% energy saving (only 1.5KW)
Quiet
Super low noise 61-72 dbA
Extremely Clean Emission
Filter emission rating 0.05mg/m³
Never Blocked
Strong and stable static pressure
· Compact size with built-in mobility kit
· Strong and constant static pressure
· 0.3-0.5μm@99.35%
· Industrial motor and VFD speed control
· Intelligent dust-full monitor
· Remote control
· Power coated steel frame
· Steel dust separation system
· Convenient tool-less dust tank cleaning
· 1-2 Dust port adapter
· Red Dot Design Award
High Efficiency
The Gyro Air® Dust Processor technology has revolutionized dust collecting. It was designed with Harvey’s invention of Axial Centrifugation Technology (or called Gyro Air® Technology) which is completely different than any existing dust collector on the market. The Gyro Air® Technology spins the flowing dust stream at high speeds (over 4000 rpm), which generates a significant centrifugal force on dust particles (over 100g) causing them to be pushed away from the air flow center and depositing them into dust tanks. The clean air remains in the chambers and any remaining fine particles are collected in the air filters.
Double Cone
Separation Chamber
Slowing down large particlesfor gravitational Drop.
Axial Centrifugation Separation Chamber (Gyro Air®)
Dust particle stream is pushed into special aerodynamic channels, generating high speed spinning.
Preliminary Separation
Heavier dust particles dropinto the tank by gravity.
Secondary Gyro Air Separation
99.7% small dust particles are separated by strong centrifugal force and pushed into dust tank.
With the new Axial Centrifugation Technology (called GYRO AIR® Technology), the G-700 can collect 99.7% of the dust particles before the air reaches its filters, which means much less cleaning of the filters without any clogging.
Energy Savings
Benefiting from the GYRO AIR® Technology and the VFD speed control system, the entire extraction system is aerodynamically optimized with extraordinary running efficiency, so it can save up to 50% in energy costs.
Quiet
The GYRO AIR® technology and its unique aerodynamic design allow the G-700 GRYO AIR® to run at an incredibly low noise level of 61 to 72 dB(A).
Extremely Clean
Emission
The air emission cleanliness level from the filters can reach an unbeatable 0.05 mg/m³ (50% better than the European Standard of 0.1 mg/m³).
Convenient
tool-less
dust tank cleaning
The two dust bins are sealed when in use but are then easily accessed through a panel on the side of the unit, and they roll out for easy emptying (and you can use disposal bags to take out wood chips).
"Some images on this page are computer-generated representations of the product and may differ from the actual product. Colors, textures, and other details may not be accurately represented in the images. Please refer to the product description and specifications for more information."
CUSTOMER TESTIMONIALS
@aaron_ludwig_woodworking
My dust collection game is about to go next level.
@aaron_ludwig_woodworking
If dust collection is on your Christmas list, give me a call to discuss the Harvey G700. I love this beast! I can save you a few bucks, which is always helpful this time of year.
@dp.woodworks
If this little beast performs half as good as it looks I’ll be a happy camper lol... Big thanks to my buddy @pj_fetscher for coming down last night and helping me out with it (and with Zacapa XO.. there still some left)
@westkentuckywoodworking

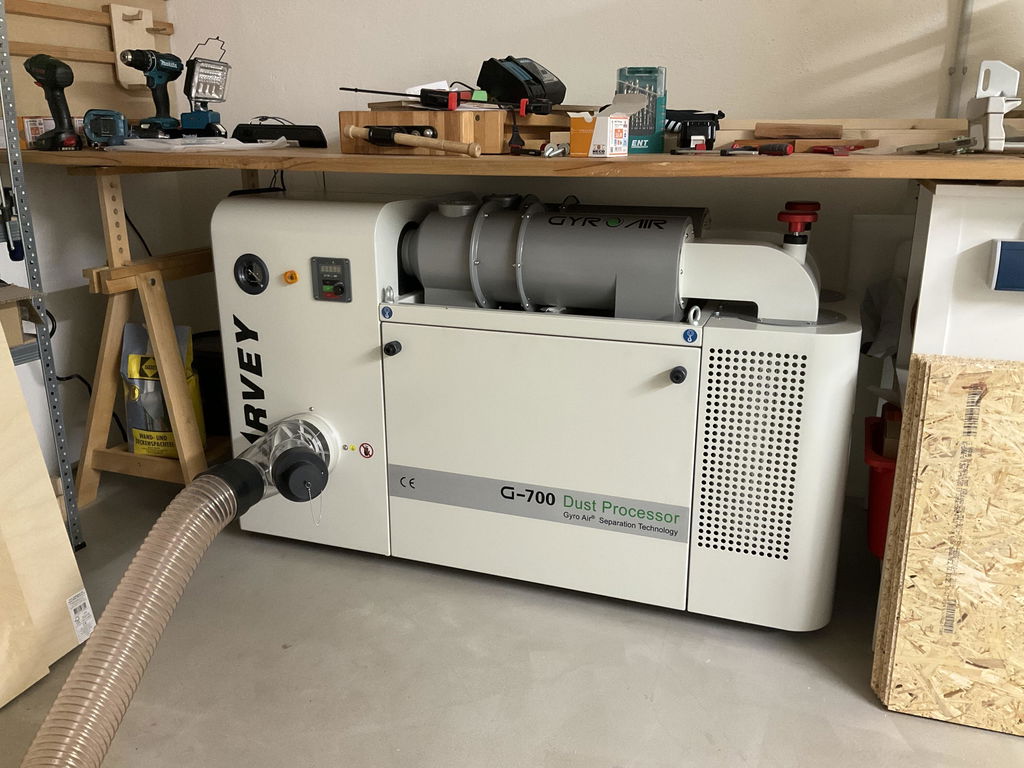

Unboxing complete and the new G700 is in its new home!
