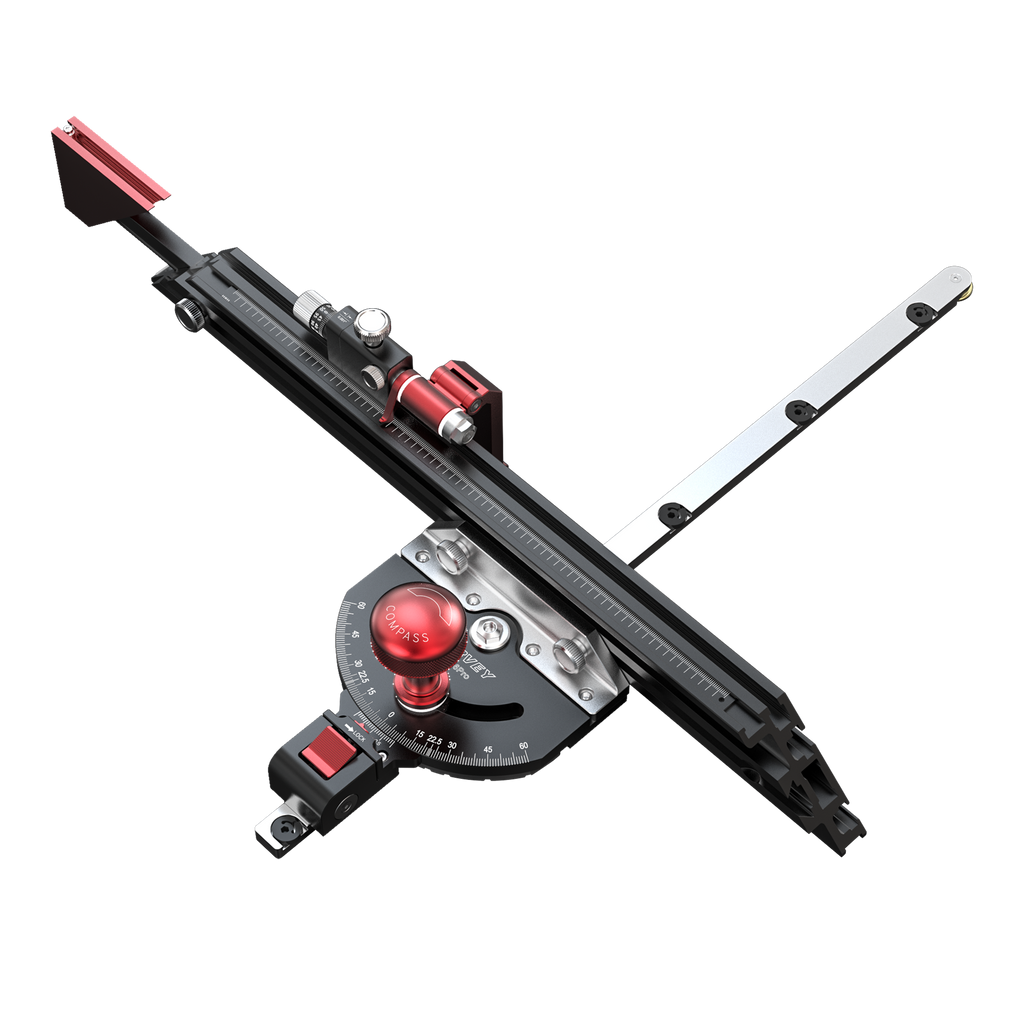

COMPASS MG-36Pro Miter Gauge

Essential to every table saw owner is an accurate miter gauge. Unfortunately, most stock miter gauges are either too sloppy or so poorly made that repeatable cuts are next to impossible.

With these failings in mind, our engineers designed the COMPASS MG-36Pro Miter Gauge. In comparison to the previous MG-36, the brand new MG-36Pro introducesseveral enhancements to elevate your woodworking experience , including the Extended Miter Bar, the precision Vernier Scale, the newly designed Miter Bar Fitness Adjustment Mechanism, and an Elbow Joint to the Flip Stop. The MG-36Pro is a tool you can trust and you will achieve your intended results which not only saves precious time, but saves you money by eliminating mistakes. And perhaps most important, the MG-36Pro is simply fun to use!

Features and Benefits

* 11 Positive Stops and Smart Trigger Lock

* 560mm Extended Miter Bar with Newly Designed Fitness Adjustment Mechanism

* New Vernier Scale Achieves Miter Angular Accuracy

* Micro-Adjustable Flip Stop with Unique Elbow Joint

* 915mm Crosscutting Fence

* Premium Materials and Craftsmanship

Unbeatable Miter Angular Accuracy

Unlike any other miter gauge on the market today, the Compass MG-36Pro Miter Gauge achieves precise angular settings byeliminating slops.

Eliminating the slop during angle position

Name: COMPASS MG-36Pro Miter Gauge
Brand: In Stock
Price: 329.0 EUR
Availability: InStock

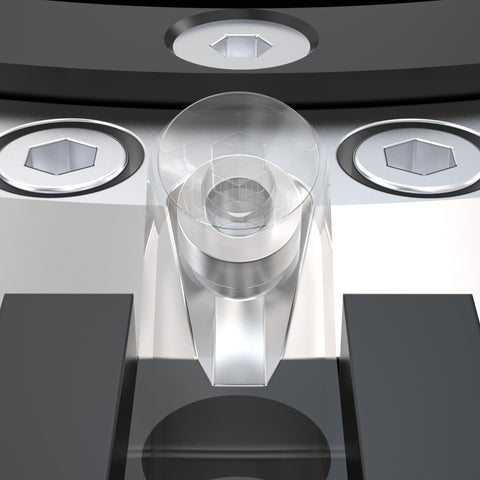

This is achieved with a positive index system consisting of tapered grooves and a spherical locking pin.

The heart of the Compass MG-36Pro Miter Gauge is our unique, positive lock index system. With the use of only two fingers, thetension that keeps the spherical locking pin in place is releasedallowing the miter gauge to pivot, and index, to all of the most common miter angles.

The Compass MG-36Pro allows for quick and positiveadjustments with 0.1 degree! Of course, the MG-36Pro can bemanually set to any other angle you desire.

Extended Miter Bar

The length of the miter bar has been extended to 22” (560mm), providing better support for crosscut guiding.

The Newly Designed Miter Bar FitnessAdjustment Mechanism

This Newly Designed Miter Bar Fitness Adjustment Mechanism is equipped with five eccentric blocks, effectively eliminating the gap between the miter bar and the T-slot, making adjustments more convenient and sliding smoother.

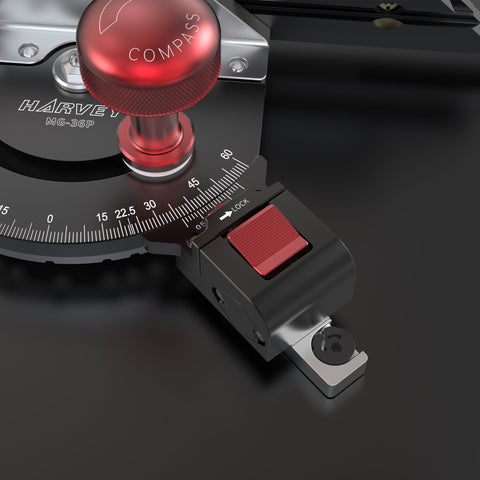

Positive Stops and Smart Trigger Lock, adding A New Precision Vernier Scale

COMPASS MG-36Pro has 11 Positive Stops: ±60°, ±45°, ±30°, ±22.5°, ±15° and 0°.

The Indexing Pin with the Smart Trigger Lock is released by pressing the button with two fingers. It is fast, accurate and easy!

A new precision vernier scale has been added to improve the accuracy of readings, achieving a precision of 0.1 degree.

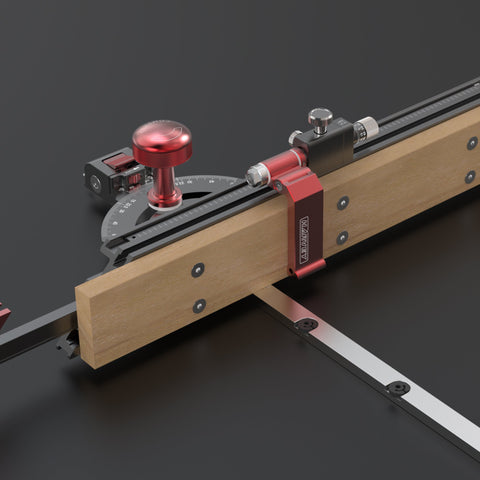

915mm Crosscutting Fence

The standard heavy-duty, black anodized crosscutting fence of the MG-36Pro is a CNC milled extrusion of 6061-T6 aluminum. It is the base for the micro-adjustable flip stop.

The whole fence can be moved smoothly and easily by loosening the two knobs.

It can be extended to 915mm in length, which is the longest length capacity on the market.

The live center is now made of carbon alloy tool steel.

A precision scale is equipped on the top of the fence.

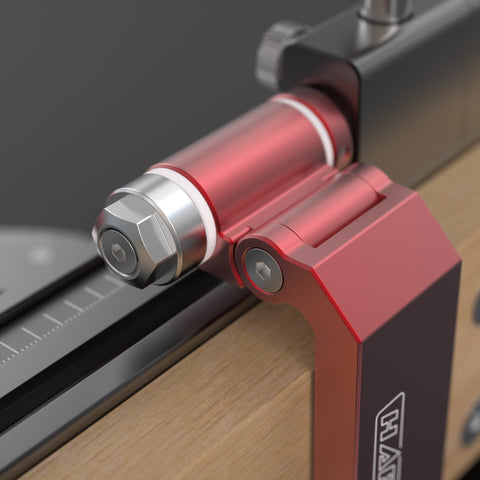

Micro-Adjustable Flip Stop

with Unique Elbow Joint

The MG-36Pro Flip Stop Assembly slides in a groove on top of the fence and can be locked anywhere you choose.

An elbow joint has been added to the flip stop, allowing for adjustment of the flip stop's position when installing a sub fence,ensuring a gap-free fit between the flip stop and the sub fence.

For stock without square faces to the table, you can index on the bevel utilizing the Brass Locating Pin.

Once locked in place, you can make micro adjustments in 0.001" (0.02mm) increments. All graduations are laser etched.Through a redesign, the locking knob on the Flip Stop Assembly has been strategically placed at the center of the entire assembly, greatly boosting the overall stability of the assembly while making adjustments.

Premium Materials and Craftsmanship

The Compass MG-36Pro is designed with longevity in mind. All parts are CNC machined, all aluminum parts are anodized and theremaining components are either made from stainless steel or brass.
